產品描述

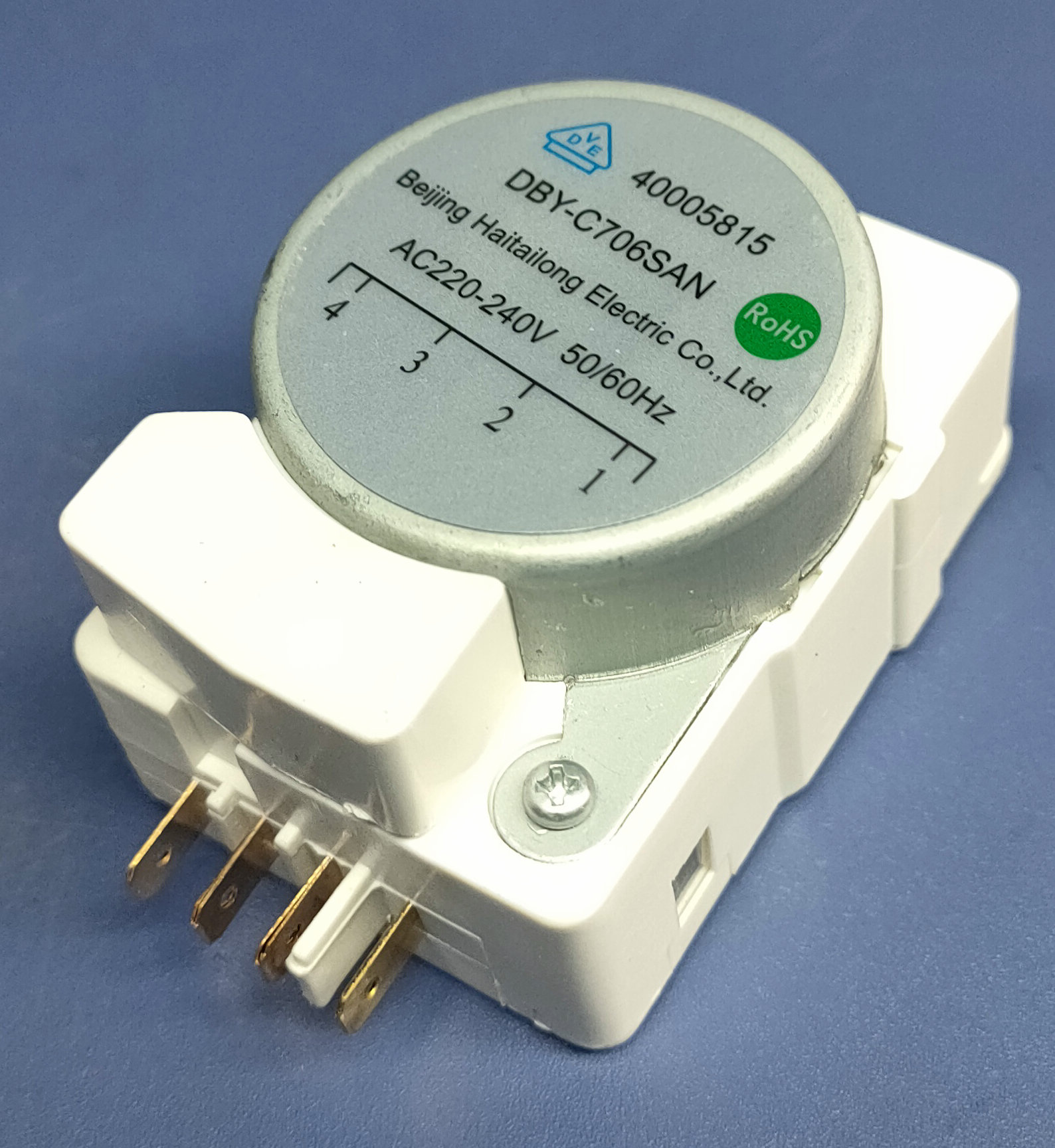

一、DBY型系列化霜定時器
DBY型定時器是一種由交流永磁同步電機傳動的新型定時器，其特點是力矩的大，體積小，工作更加可靠，可用于各種新、老型間冷式電冰箱的自動除霜。

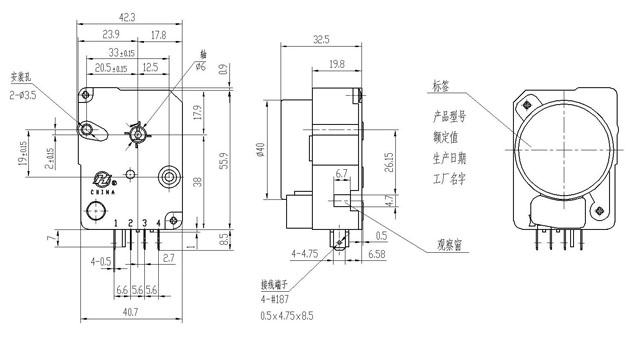

二、外形圖
三、主要技術指標
| 額定電壓 | 頻率 | 輸入電流 | 輸入功率 |
| AC100V | 50/60Hz | <10mA | 0.4W |
| AC100/127V | 50/60Hz | <10mA | 0.4W |
| AC200/240V | 50/60Hz | <15mA | 0.6W |
|
開關容量 |
|
|
3-2 |
3-4 |
|
AC125V 10A COSφ=0.5-1 |
AC125V 10A COSφ=1 |
|
AC250V 5A COSφ=0.5-1 |
AC250V 5A COSφ=1 |

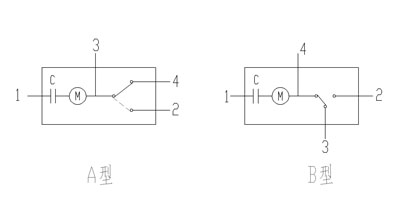

四、電路型式
電機 常開觸點: 3-2 常閉觸點: 3-4
五.定時周期T1和化霜時間T2
| DBY系列定時器型號與定時周期參數對照表 | ||||||
| 型號 | 50HzT1 | 50HzT2 | 50HzT3 | 60HzT1 | 60HzT2 | 60HzT3 |
| DBY108S | 1H13M±6M | 9M36S±2M24S | 1H01M±5M | 8M±2M | ||
| DBY108SAN | 1H±6M | 7M30S±2M | 50M±5M | 6M15S±1M40S | ||
| DBY109S | 1H02M±6M | 9M±3M | 51M±5M | 7M30S±2M30S | ||
| DBY506 | 6H06M±6M | 8M±3M | 5H05M±5M | 6M40S±2M30S | ||
| DBY603 | 6H±6M | 3M17S±1M12S | 5H±5M | 2M44S±1M | ||
| DBY607S | 7H30M±6M | 8M24S±3M36 | 6H15M±5M | 7M±3M | ||
| DBY621 | 7H12M±6M | 25M12S±3M | 6H±5M | 21M±2M30S | ||
| DBY627 | 6H±6M | 27M30S±2M30S | 5H±5M | 22M55S±2M5S | ||
| DBY640S | 5H59M±6M | 40－50M±5M | 4H59M±5M | 33-42M±4M10S | ||
| DBY703 | 7H22M±6M | 3M±1M12S | 6H08M±5M | 2M30S±1M | ||
| DBY706S | 8H01M±6M | 7M18S±2M24 | 6H41M±5M | 5M53S±2M | ||
| DBY802 | 8H48M±6M | 2M24S±48S | 7H20M±5M | 2M±40S | ||
| DBY804K | 8H4M±6M | 3M30S±1M12S | 1M30S±1M | 6H43M±5M | 2M55S±1M | 1M15S±50S |
| DBY803 | 8H±6M | 2M24S±1M12S | 6H40M±5M | 2M±1M | ||
| DBY805 | 8H±6M | 5M±1M12S | 6H40M±5M | 4M10S±1M | ||
| DBY807S | 9H36M±6M | 8M24S±2M24S | 8H±5M | 7M±2M | ||
| DBY807SBL | 10H21M±6M | 8M24S±2M24S | 8H38M±5M | 7M±2M | ||
| DBY820 | 8H01M±6M | 20M54S±3M36S | 6H41M±5M | 17M24S±3M | ||
| DBY822 | 9H38M±6M | 26M24S±3M36S | 8H01M±5M | 22M±3M | ||
| DBY812 | 9H38M±6M | 15M±3M36S | 8H01M±5M | 12M30S±3M | ||
| DBY825 | 8H01M±6M | 25M±5M | 6H41M±5M | 21M±4M20S | ||
| DBY903 | 10H50M±6M | 3M36S±1M12S | 9H02M±5M | 3M±1M | ||
| DBY907S | 12H±6M | 8M±3M | 10H±5M | 6M40S±2M30S | ||
| DBY1003 | 12H±6M | 3M18S±1M12S | 10H±5M | 2M45S±1M | ||
| DBY1004 | 9H57M±6M | 4M±1M12S | 8H18M±5M | 3M20S±1M | ||
| DBY1005 | 10H50M±6M | 5M49S±1M12S | 9H02M±5M | 4M51S±1M | ||
| DBY1009S | 12H±6M | 10M48S±2M24S | 10H±5M | 9M±2M | ||
| DBY1012 | 12H01M±6M | 14M24S±3M36S | 10H01M±5M | 12M±3M | ||
| DBY1035 | 11H58M±6M | 42M±3M36S | 9H58M±5M | 35M±3M | ||
| DBY1107AL | 13H43M±6M | 8M30S±2M24S | 11H26M±5M | 7M5S±2M | ||
| DBY1107AN | 11H24M±6M | 7M5S±2M24S | 9H30M±5M | 5M54S±2M | ||
| DBY1107K | 11H24M±6M | 5M20S±1M12S | 2M±1M | 9H30M±5M | 4M27S±1M | 1M40S±50S |
| DBY1107S | 11H22M±6M | 7M20S±2M24S | 9H28M±5M | 6M7S±2M | ||
| DBY1203 | 12H±6M | 3M17S±1M12S | 10H±5M | 2M44S±1M | ||
| DBY1204 | 12H±6M | 4M48S±1M12S | 10H±5M | 4M±1M | ||
| DBY1205 | 12H±6M | 6M36S±1M12S | 10H±5M | 5M30S±1M | ||
| DBY1206 | 12H±6M | 6M±1M12S | 10H±5M | 5M±1M | ||
| DBY1207S | 12H±6M | 7M±2M24S | 10H±5M | 5M50S±2M | ||
| DBY1208S | 14H20M±6M | 9M36S±3M36S | 11H56M±5M | 8M±3M | ||
| DBY1210S | 12H18M±6M | 10M56S±3M | 10H15M±5M | 9M7S±2M30S | ||
| DBY1210S | 12H17M±6M | 10M±2M | 10H14M±5M | 8M20S±1M40S | ||
| DBY1110S | 13H18M±6M | 13M±2M24S | 11H05M±5M | 10M50S±2M | ||
| DBY1221 | 14H24M±6M | 25M12S±3M36S | 12H±5M | 21M±3M | ||
| DBY1230 | 11H58M±6M | 30M±3M36S | 9H58M±5M | 25M±3M | ||
| DBY1235 | 14H24M±6M | 42M±3M36S | 12H±5M | 35M±3M | ||
| DBY1302 | 13H±6M | 2M24S±48S | 10H50M±5M | 2M±40S | ||
| DBY1307 | 16H02M±6M | 8M±2M24 | 13H22M±5M | 6M40S±2M | ||
| DBY1307AN | 13H05M±6M | 7M12S±1M12S | 10H54M±5M | 6M±1M | ||
| DBY1608 | 19H12M±6M | 9M36S±3M36S | 16H±5M | 8M±3M | ||
| DBY2407 | 24H01M±6M | 7M±2M24S | 20H01M±5M | 5M50S±2M | ||
| DBY2496 | 23H59M±6M | 96M±5M | 19H59M±5M | 80M±5M10S | ||
| DBY24100 | 28H49M±6M | 120M±8M24S | 24H±5M | 100M±7M | ||
| DBY3109 | 31H16M±6M | 7M30S±2M24S | 4M±1M30S | 26H03M±5M | 6M15S±2M | 3M20S±1M15S |
六、噪音:<30db(A)
七、可根據用戶需要生產其它各種特殊規格產品
